10-70KPA Corrosive Use Biogas , alkali and acid gas Water Cooled Roots Blower

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	BK
Πιστοποίηση:	ISO9001/ISO14001
Αριθμό μοντέλου:	YU-EG250

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1 Σετ
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	τυποποιημένη ξύλινη θήκη εξαγωγής
Χρόνος παράδοσης:	15 έως 30 εργάσιμες ημέρες, εξαρτάται από το ποσό της παραγγελίας και τις προδιαγραφές
Δυνατότητα προσφοράς:	20 σετ το μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Ικανότητα:	35,68-75,58 m³/min	Διαφορική πίεση εκφόρτισης:	10-70kpa
Μέγεθος διάτρησης:	DN250 (10 ")	Τύπος ψύξης:	Νερό
Τύπος σύνδεσης:	Ζώνη Drive	Ζώνη και τροχαλία:	Βιοαέριο, απόβλητα αερίου, μεταφορά εκρηκτικού μέσου
Δροσίζοντας νερό:	25 λ/λ	Ταχύτητα:	850-1400 σ.α.λ
Δύναμη άξονα:	14,71-99,24 KW

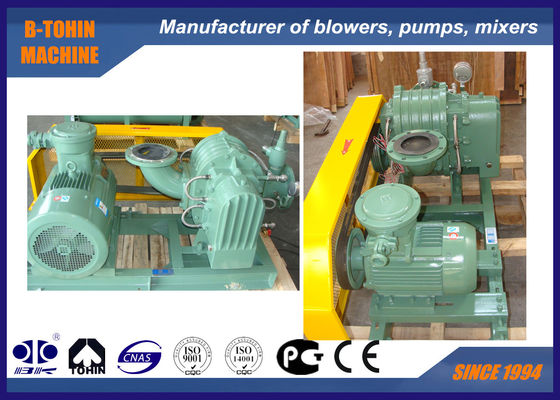

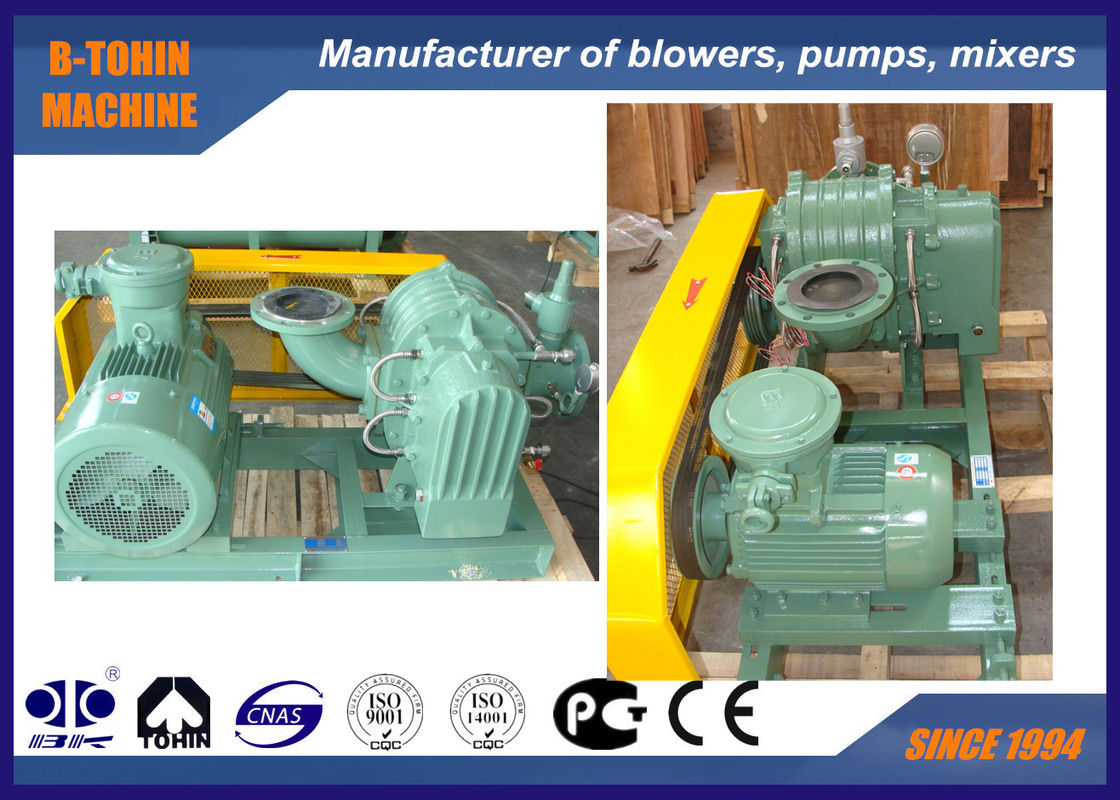

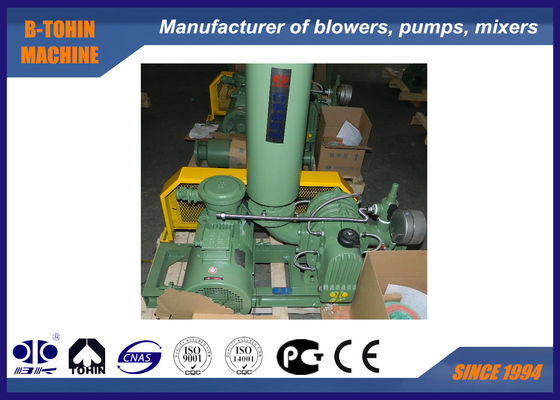

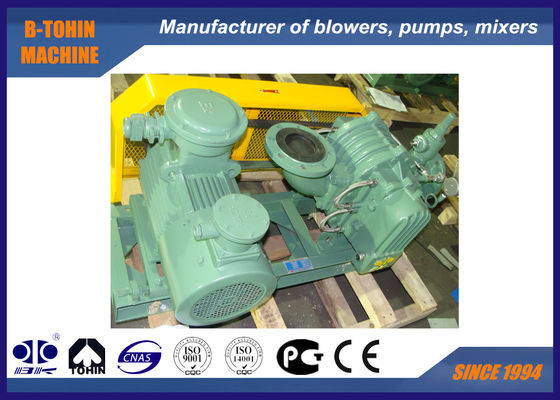

Roots type Biogas Blower DN250 anti-corrosive, explosion-proof

About YU-EG

A new type blower designed by our company, impeller and internal surface with special coating, capable of handling particular gases with acids, alkalis, corrosive, inflammable or explosive materials.

Specifications

Model	YU-EG250
Air capacity	35.68-75.58m³/min
Discharge differential pressure	10-70KPA
Rotary speed	850-1400rpm
Cooling water volume	25 L/min
Motor type	11-90/110/132-160KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Installation type	Standard: vertical type
N.W. of blower without motor	1200kg
Packing size Approx.	3.421.031.73m (lengthwidthheight)
Features	1. Suitable for flammable and corrosive gas because of its explosion proof and antisepsis performance 2. Equipped with multiply seal to prevent leakage 3. Sprayed with special antisepsis material on cylinder and cover.

Parameter sheet

Model	Port	Inlet capacity (m3/min)and shaft power (kW) under various pressure									Cooling water
		Speed	0.1kgf/cm2		0.2kgf/cm2		0.3kgf/cm2		0.4kgf/cm2
			1000mmH2O		2000mmH2O		3000mmH2O		4000mmH2O
			0.01Mpa		0.02Mpa		0.03Mpa		0.04Mpa
			m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	(l/min)
YU-EG250	250(10")	850	43.73	14.71	41.41	23.06	39.61	30.80	38.17	35.28	25
		1000	52.41	17.30	50.10	27.12	48.30	36.23	46.85	41.50
		1150	61.10	19.90	58.78	31.19	56.99	41.67	55.54	47.73
		1250	66.89	21.63	64.58	33.90	62.78	45.29	61.33	51.88
		1400	75.58	24.22	73.26	37.97	71.47	50.73	70.02	58.10

Model	Port	Inlet capacity (m3/min)and shaft power (kW) under various pressure									Cooling water
		Speed	0.5kgf/cm2		0.6kgf/cm2		0.7kgf/cm2		0.8kgf/cm2
			5000mmH2O		6000mmH2O		7000mmH2O		8000mmH2O
			0.05Mpa		0.06Mpa		0.07Mpa		0.08Mpa
			m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	(l/min)
YU-EG250	250(10")	850	36.83	43.60	35.68	51.93					25
		1000	45.52	51.30	44.36	61.09	43.26	70.89
		1150	54.21	58.99	53.05	70.26	51.95	81.52
		1250	60.00	64.12	58.84	76.37	57.74	88.61
		1400	68.69	71.81	67.53	85.53	66.43	99.24

Structure of blower main body

10-70KPA Corrosive Use Biogas , alkali and acid gas Water Cooled Roots Blower 0

Assembling drawing of blower package

10-70KPA Corrosive Use Biogas , alkali and acid gas Water Cooled Roots Blower 1

Standard supply of scope

1. shaft blower

2. vacuum pressure relieve valve

3. check valve

4. inlet silencer(with filter)

5. discharge silencer

6. public base (with belt cover)

7. rubber flexible joint and shock pad

8. pulley

9. pressure gauge

10. belt

11. bolts and nuts and other connection parts

12. motor

FAQ

1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.

3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.

4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

6. What are your terms of payment?
1. TT30% as the advanced payment and TT 70% after inspection before shipping.
2.100% irrevocable L/C at stght.
