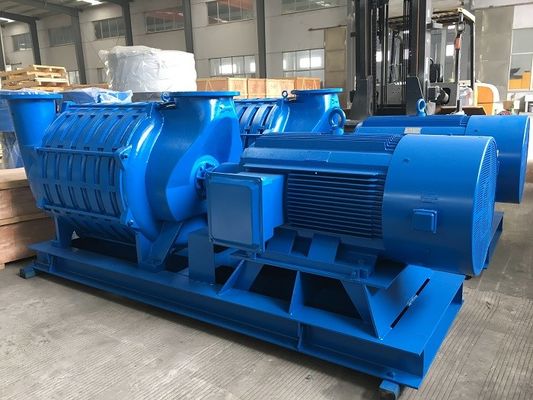

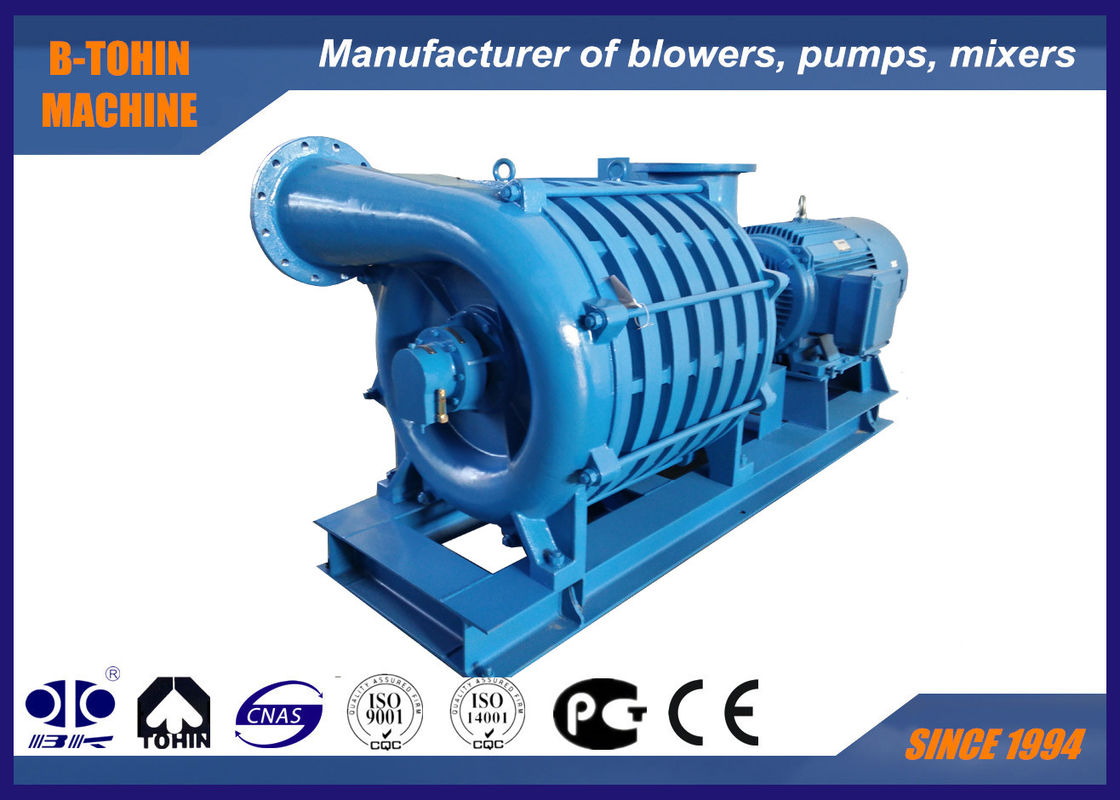

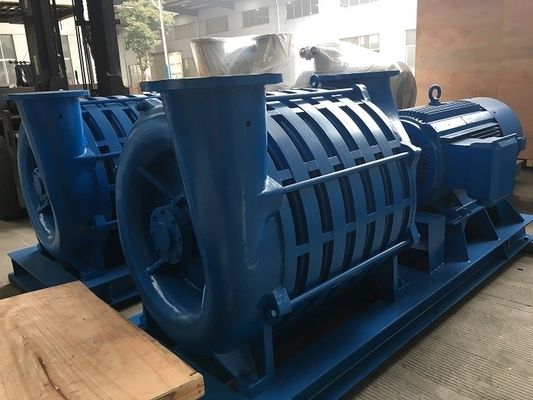

Input Flow 35m³/min, Pressure 39.2-68.6KPa, Water Treatment Multi-stage Centrifugal Blower

Low Noise Multistage Centrifugal Blower, wastewater treatment air blower

About D series mult-stage centrifugal blower

We are a professional manufacturer of various types of blowers. Our multistage centrifugal blowers, along with supporting motors and accessories, can also be provided with fully equipped control systems. Widely applied in sewage treatment, blast furnace gas supply, coal

washing plants, mine flotation, chemical gas production, vacuum and other fields, the multistage centrifugal blowers can also be used to convey other special gases.

1,Conveying medium: clean air, natural gas, biogas, methane, hydrogen, etc.

2,Material of impeller: casting steel & aluminum alloy

3,Cooling method: air cooling or water cooling

4,Driving method:  belt transmission

5,Application: Water and waste water treatment, vacuum dust cleaning, air knife drying, the flotation and separation, zinc plating and electroplating, oxygen filling, paper making and printing, and air combustion etc. fields.

Specifications

Features

1. Compact structure: Elegant in appearance, stable in operation, and convenient for installation and maintenance.

2. Smooth operation: The high-efficiency impeller is optimized to minimize axial force and corrected static-dynamically for balance, ensuring the whole unit runs smoothly and stably.

3. Low noise: The blower operates without any mechanical friction, and the reasonable blade profile minimizes noise. The noise generated by the multistage centrifugal blower is high-frequency, which can be significantly attenu by obstacles, so there is almost no noise outside the blower room.

4. Bearing lubrication: Grease lubrication is adopted for bearings, improving lubrication conditions and extending bearing service life.

5. Impeller: The impeller features a special composite curve, which reduces internal leakage and improves aerodynamic efficiency and overall unit efficiency.

6. Easy adjustment: The flow rate can be adjusted within a certain range by only using the inlet butterfly valve.

7. Drive mode: Driven by a two-pole asynchronous motor. Different voltage motors can be selected according to the user's power grid conditions.

8. Sealing: Each stage of impeller is equipped with inlet rings, and labyrinth seals are installed between stages and at both ends of the casing to prevent gas leakage.

9. Cooling: Since the impeller compresses gas stage by stage, the temperature of the exhaust casing is much higher than that of the intake casing. Both air cooling and water cooling devices are provided for the exhaust bearing pedestal to extend the service life of bearings.

10. Transmission mode: Coupling transmission is adopted. Different transmission modes can also be selected according to different equipment and processes.

Structure of blower main body

Assembling drawing of blower package

Standard supply of scope

1. Blower main body

2. Inlet muffler (with air filter)

3. Public base for motor and blower(including coupling cover)

4. Inlet manual butterfly valve

5. Motor

6. Pressure gauge

7. Mounting bolts and connection accessories

8. Check valve
